Product Description

☀️

UNLOCKING THE POTENTIAL OF SOLAR ENERGY!
Dual-axis trackers allow achieving the maximum energy output! Our GPS-equipped dual-axis trackers ensure full sun exposure every hour of every day of the year.

The ZRD series full automatic dual axis solar tracking system is a patented technology featuring two automatic axes to track the sun in both east-west and south-north directions automatically. This advanced system is designed to increase your power generation by 30% - 40%.

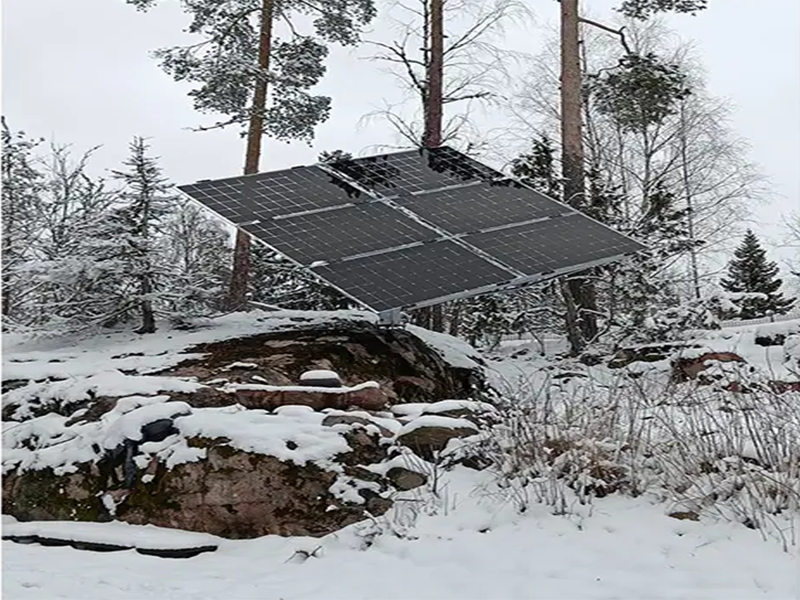

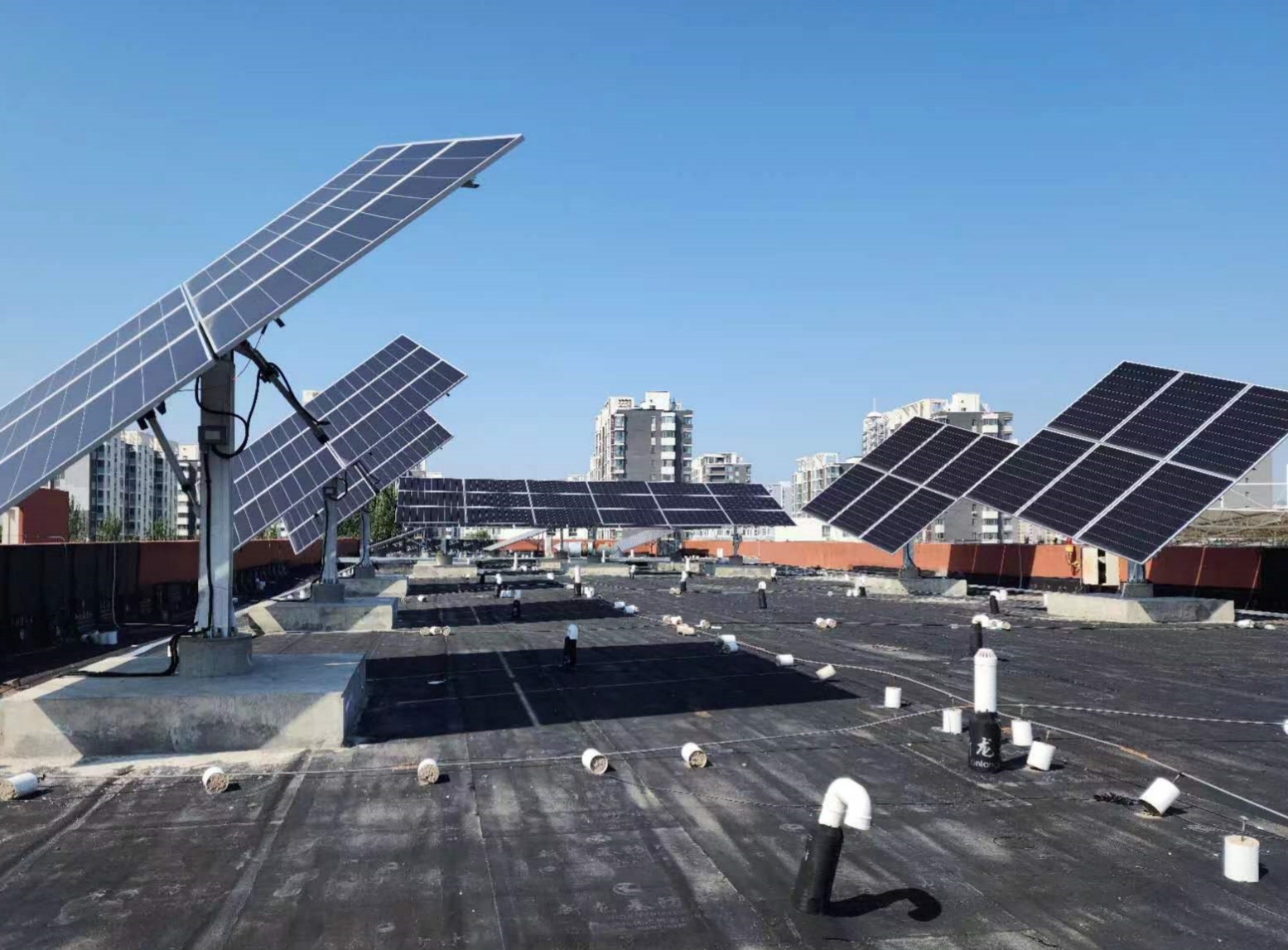

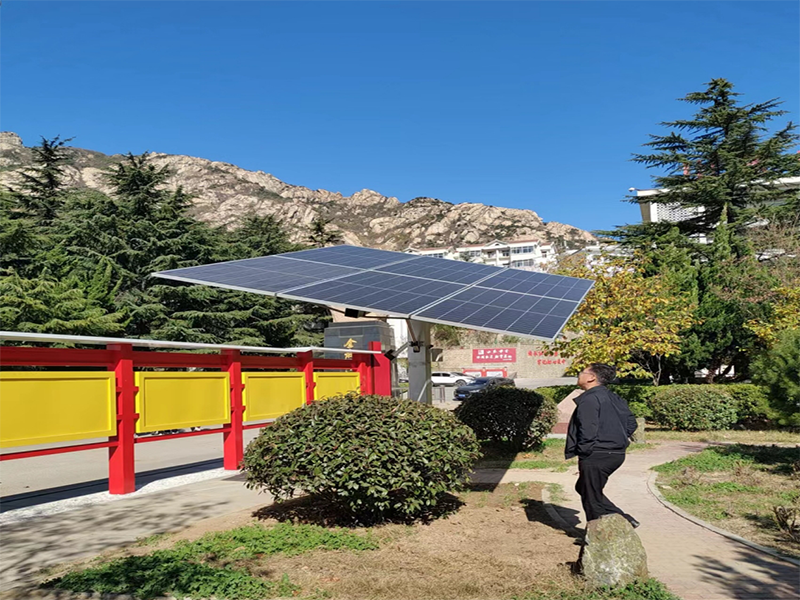

The ZRD-06 dual axis solar tracking system is one of the most popular models, supporting 6 pieces of solar panels with a total power capacity ranging from 2kW to 4.5kW. The solar panels are generally arranged in a 2 * 3 portrait or landscape layout.

⚙️

Peak Efficiency

Designed to follow the sun's path throughout the day, optimizing panel orientation for increased ROI.

💨

Wind Resistance

Withstands maximum wind speeds up to 40m/s with an integrated horizontal wind stow strategy.

🔋

Low Consumption

Equipped with brushless D/C motors, ensuring stability and reliability with minimal power usage.

🌡️

Extreme Adaptability

Operates reliably in harsh environments with temperatures ranging from -40°C to +75°C.

Control mode	Time + GPS
Average tracking accuracy	0.1° - 2.0° (adjustable)
Gear motor	24V/1.5A
Output torque	5000 N·M
Tracking power consumption	< 0.02kwh/day
Azimuth angle tracking range	±45°
Elevation angle tracking range	0° - 45°
Max. wind resistance in horizontal	40 m/s
Max. wind resistance in operation	> 24 m/s
Material	Hot-dipped galvanized steel >65μm / Superdyma
System guarantee	3 years
Working temperature	-40℃ — +75℃
Technical standard & certificate	CE, TUV
Weight per set	170 KGS - 200 KGS
Total power per set	2.0kW - 4.5kW

❓ Frequently Asked Questions

1. How much can the ZRD-06 system increase solar power generation?

The ZRD series dual-axis tracking system can increase power generation by 30% to 40% compared to fixed tilt systems by ensuring the panels follow the sun's path all day.

2. How does the tracking mechanism work?

The system utilizes a combination of Time and GPS control to automatically track the sun on two axes: east-west and south-north directions.

3. What is the wind resistance capability of this solar tracker?

It is designed to withstand horizontal wind speeds of up to 40m/s. It also features a wind stow strategy that moves panels to a horizontal position to reduce wind pressure.

4. What are the temperature limits for operation?

The ZRD-06 is built for harsh environments, operating reliably in temperatures ranging from -40°C to +75°C.

5. What is the energy consumption of the tracking system itself?

The system is highly efficient, with a daily tracking power consumption of less than 0.02 kWh.

6. What certifications and materials are used in its construction?

The tracker is CE and TUV certified. It is constructed using hot-dipped galvanized steel and Superdyma for superior durability and corrosion resistance.
